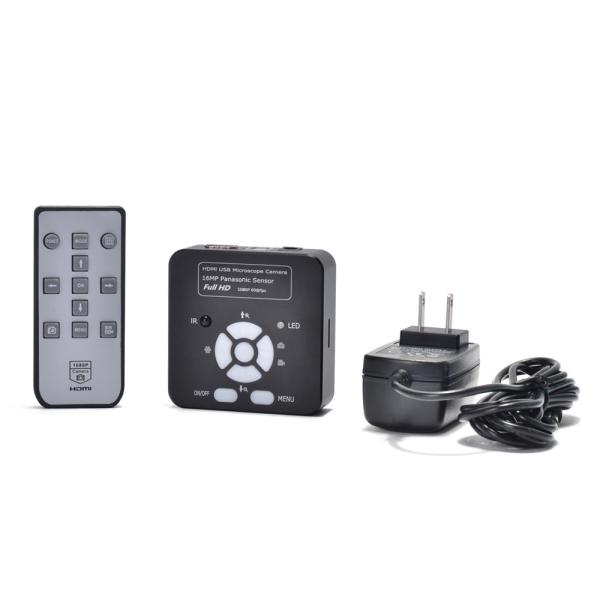

industry camera Features:

Functional introduction:

The 16 million pixel imported Panasonic CMOS image sensor is used.

Using 1/2.33 inch image sensor, the viewing angle is wider than 1/3 inch.

HDMI 1080P 60FPS frame image output;

USB free drive output 1080P 30FPS frame image output;

One bond freezing / thawing function;

16 million pixel photographing and 1080P video recording;

Support 2.7K 30FPS@ frame video recording

Electronic digital zooming function;

Support manual / automatic exposure, exposure compensation value adjustment;

Support manual / automatic white balance, red, green and blue adjustable.

10 line drawing functions, line color, thickness and position can be provided.

Provide central cross line display / close;

Support TF card storage, maximum support 64GB;

Support remote control, take pictures without jitter, and make images clearer.

Support the Chinese and English menu language (default English);

Support shutdown set parameter preservation;

Camera parameters:

Sensor: 1/2.33 inch Panasonic 16 million pixel CMOS sensor

Pixel size: 1.335 mu m * 1.335 mu m

HDMI output: 1920*1080 60FPS frames

USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Lens interface: C/CS

Exposure: automatic / manual

Exposure compensation: support

White balance: automatic / manual, RGB adjustable

Storage: maximum support for 64GB

Input voltage: DC 12V

Scribing: supports 10 straight lines. The color, thickness and position can be adjusted.

Center line: support

Menu language: English / Chinese / Japanese / French / German / Spanish /

Remote control: support remote control operation

Net weight: 250 grams

Interface Description:

1, HDMI high definition video output interface;

2, USB B-type high definition video output interface;

3, T-flash card socket;

4, DC interface (Note: DC 12V)

Ningbo Lylight Electric Co. Limited. is one of the leading specialist manufacturers of optical system and components unit, located in Ningbo City, Zhejiang Province of China. Our highly qualified and experienced workforce enables us to offer custom made solutions economically

Since our establishment, we have gained high reputation with the hard work of our skilled engineers, researchers and technicians. Our strong updated technical expertise makes us intensively aware of every customer’s need, be it in product performance or prompt delivery.

We work hard to provide our customers with a wide range of quality optical products and solutions to their imaging, illumination and microscopy needs at competitive prices.

Ningbo Lylight designs, integrates, and distributes stereo microscopes, Auto Focus HD microscopes, digital USB microscopes, 3D rotational microscope systems, 3D solder paste inspection and high precision XYZ cmm vision measuring systems. Our mission is to provide the latest vision technology with best value to customers in medical device, PCB electronic, semiconductor, and research industries. With over 10 years in microscope and video inspection measurement business, we are driven to be the best vision solution provider and welcome to discuss your unique applications.

Products: led ring light for microscope illumination, microscope accessories and microscope spare parts
